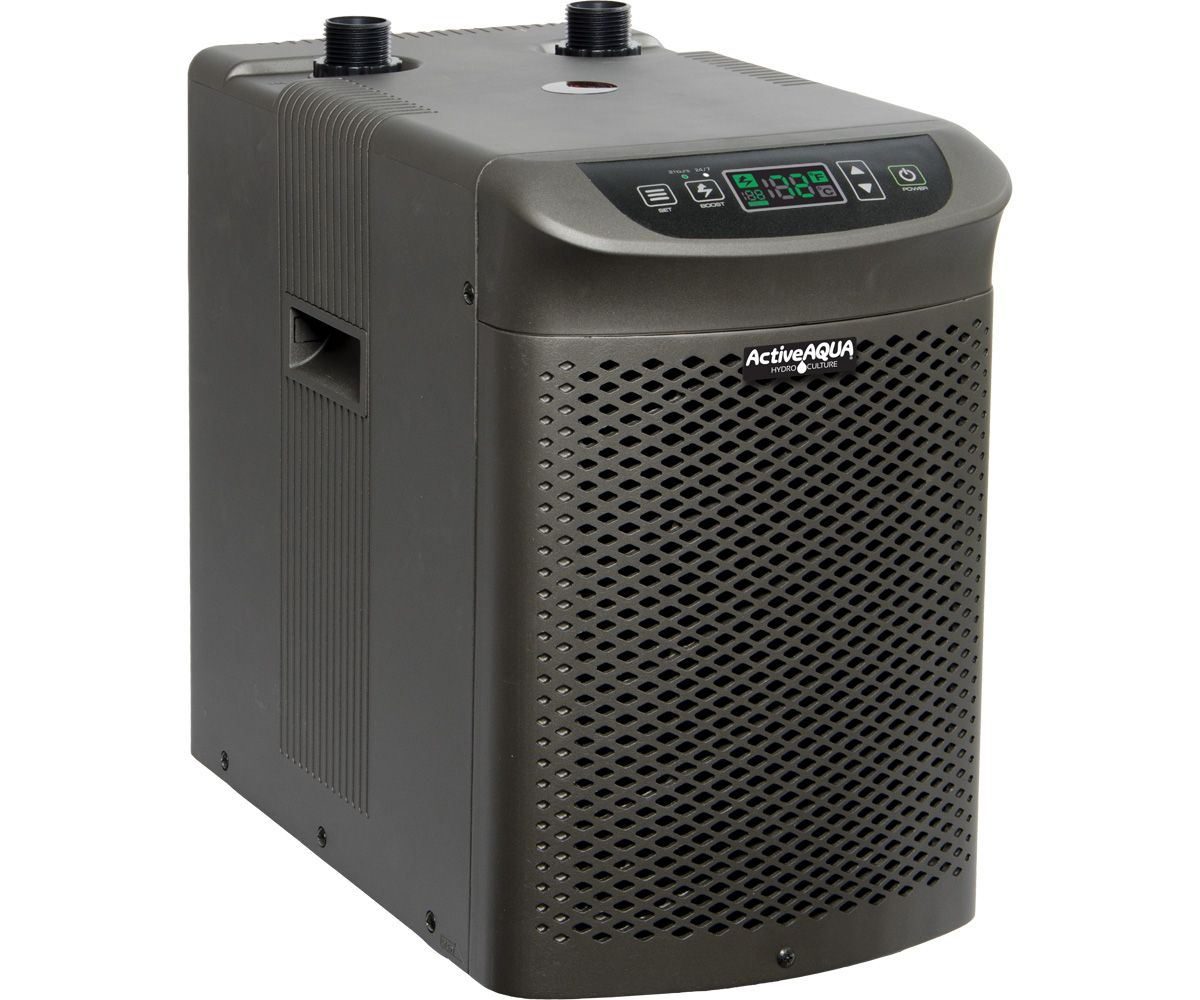

Active Aqua chillers are environmentally friendly (they use R134a refrigerant) and are ideal for keeping the nutrient solution in your reservoir at the perfect temperature. Each unit has a user-friendly temperature system that allows you to control your desired temperature range as needed, and all models now have a boost function that accelerates the chilling process for quicker establishment of desired nutrient solution temperature.
Features:
Anti-corrosive pure titanium evaporator for both fresh and salt water
PSI Rating: 10 psi maximum
sizes/ specs:
Rate of flow: 1/10 HP (132‒396 GPH 500‒1500 L/H)
Large refrigeration capacity (recommended volume: 10‒40 gal / 50‒150 L)
Rated BTU per hour: 1,020
Recommended pumps size: 160 - 400 g/h
3/4" and 1/2" fittings included
Unit dimensions: 17"L x 10"W x 15"H
Rate of flow: 1/4 HP (396‒925 gal/h -1500‒3500 L/h) Large refrigeration capacity (recommended volume: 40 gal to 92 gal)
Rated BTU per hour: 3,010
Recommended pump size: 400 - 800 g/h
1/2"and 3/4" fittings included
Unit dimensions: 18"L x 13"W x 17"H
Rate of flow: 1/2 HP (800‒1600 G/h -3000‒6000 L/h)
Large refrigeration capacity (recommended volume: 90 - 172 gal)
Rated BTU per hour: 4,020
Recommended pump size: 800 - 1010 g/h
1/2", 3/4", and 1" fittings included
Unit dimensions: 19"L x 14"W x 19"H
Rate of flow: 1 HP (1320‒3900 G/h - 5000‒15000 L/h)
Large refrigeration capacity (recommended volume: 80-250 gal/300-950 L)
Rated BTU per hour: 10,050
PSI Rating: 10 psi maximum
Recommended pumps: 1010 - 2010 g/h
1"- 1 1/4" fittings included
Unit dimensions: 22"L x 15"W x 19"H
Not rated for central/ house plumbing
Please note that the starting ambient temperature of your solution will always affect the duration of the initial chilling process
*Approved for indoor use ONLY
Active Aqua water chillers are ideal to keep the hydroponic solution in your reservoir at the perfect temperature. With their microcomputer control system, LCD display, large refrigeration capacity, and temperature memory system, they take much of the indoor growroom work off your hands. Keep your chiller "chilled out" and operating at maximum efficiency with a chiller kit. Sized to fit each of our Active Aqua chillers, the kit includes two hose clamps, one replacement fuse, and two rubber replacement collars for inlet/outlet fittings.
