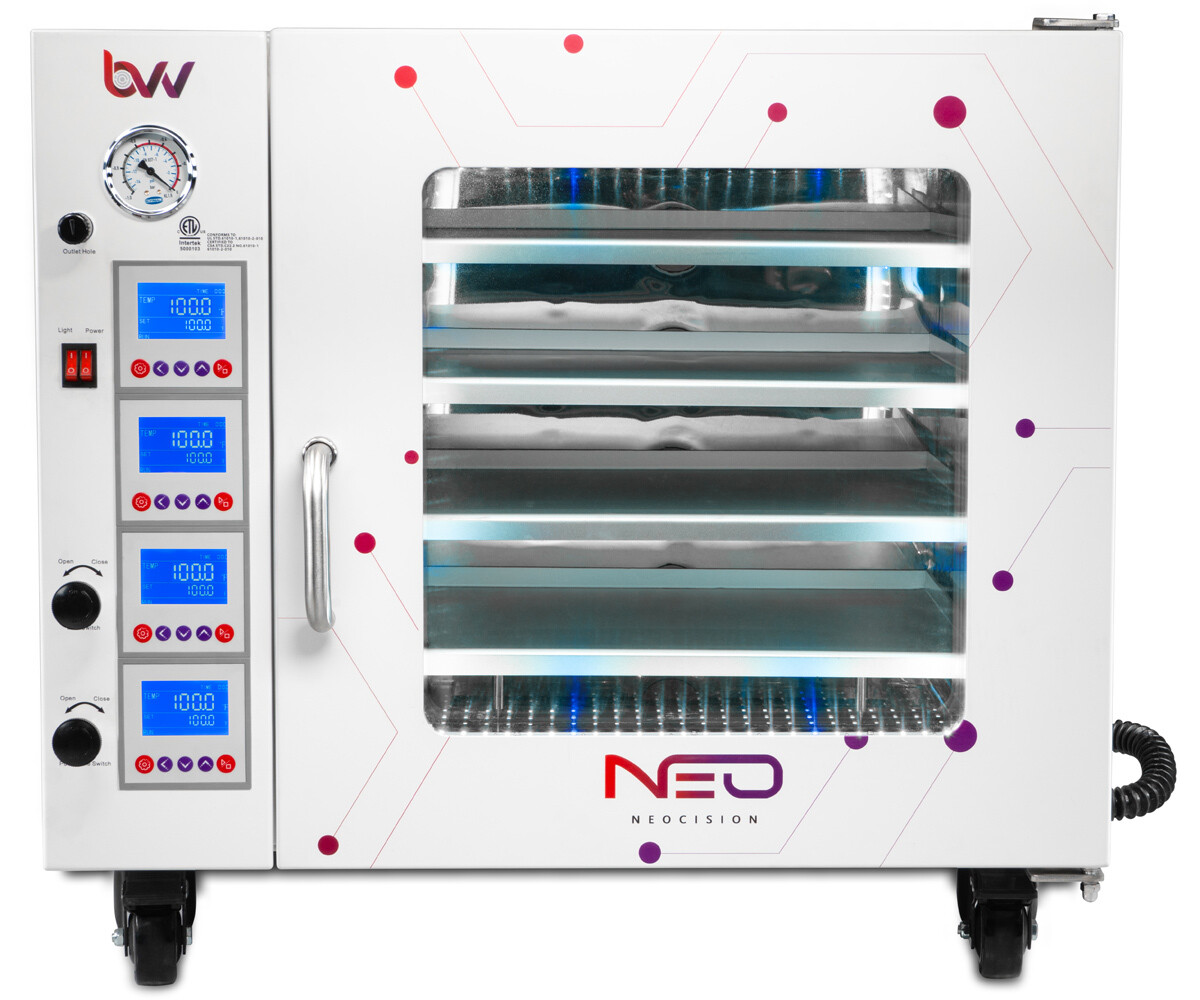

best value vacsvacuum ovens are purpose-built to perform degassing / purging of light hydrocarbon solvents. the oven applies a gentle heat under reduced pressure conditions to expedite solvent degassing while simultaneously preserving color, aroma, and overall solute quality.bvv hasappliedtheir extensive vacuum expertise and industry experience to produce a series of ovens designed exactly for your needs: low consumption, high-throughput, and reliable operation.
features:
•3.2 cu ft interior space
•4 individually heated shelves
•independent pid for each shelf
•led lighting in door
•automatic overtemperature shutoff
•built-in resettable circuit breaker
•heavy duty casters with adjustable leveling feet
•etl certified
benefits: •shelf heating yields faster purge times
•removes residual solvent to low ppm
•each shelf can be set to different temperatures
•allows purging of multiple runs of the extractor
includes: •3.2cf vacuum oven
•kf-25 to ¼” jic adapter with clamp
•¼” hvac hose
technical specs:
•dimensions: 30” width, 27” depth, 27” height
•weight: 260 lbs
•voltage: 120v
•frequency: 60hz
•power: 1050w
•current: 16a
•vacuum range: -1 – 0 bar/-14.5 – 0 psi
•operating temperature range: rt + 18 °f - 212°f
•304 stainless steel interior chamber
•temperature stability: ±1.0°f
•temperature uniformity: within 4% of temperature setpoint
•heat-up time: 20 minutes to preheat.
•ultimate vacuum: <500 µmhg / mtorr / micron
•time to vacuum: 5 minutes to -1 bar using 12cfm 2-stage vacuum pump
•shelf capacity: 293 in2
