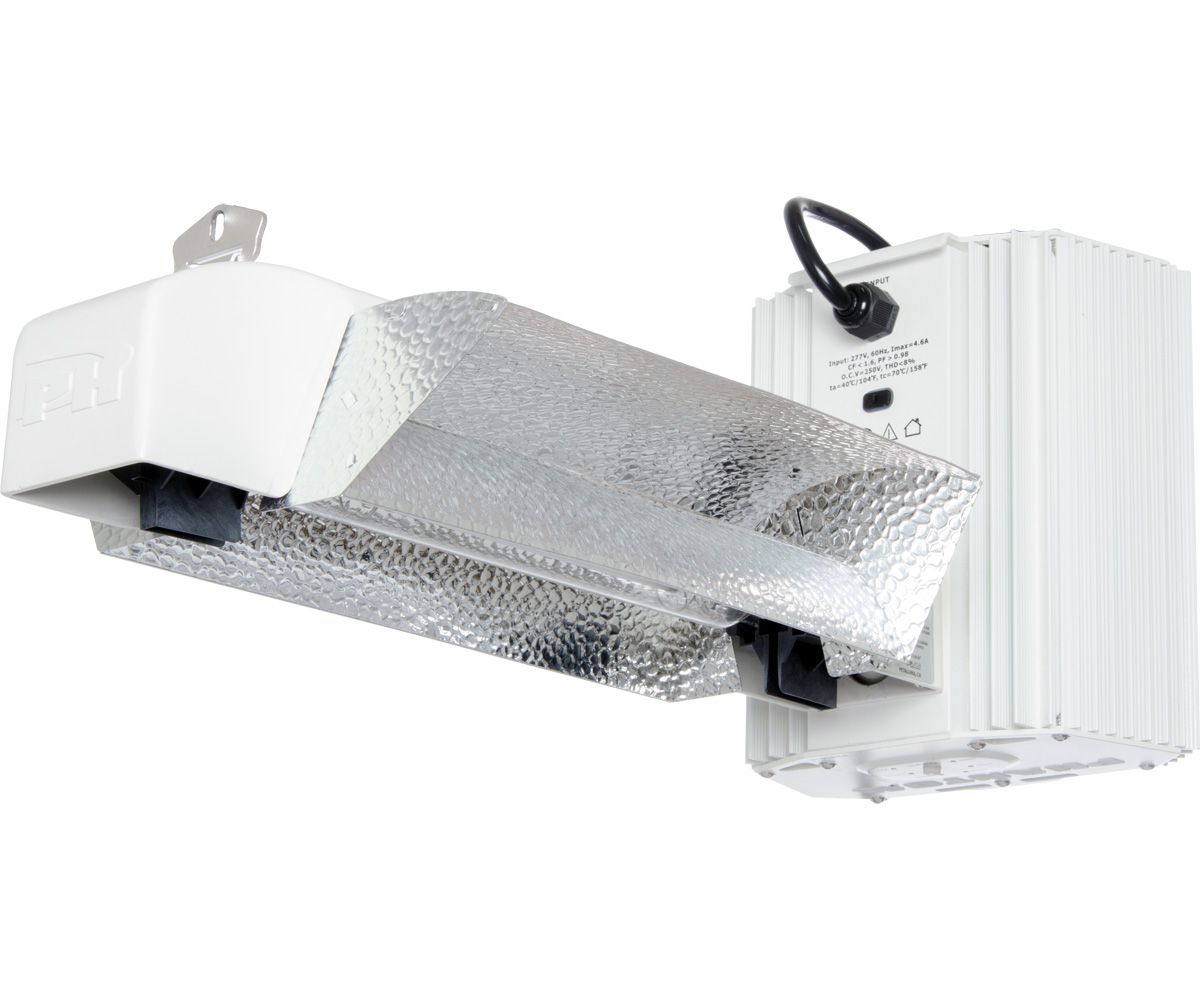

The Commercial DE Open Lighting System features state-of-the-art double-ended technology that uniformly delivers optimum PAR value over a broad footprint.
At the heart of this system is the PHB5015 Phantom Commercial DE Ballast with USB Interface. Its USB interface enables connection with the Autopilot PX Series Advanced Lighting Controllers.
*Fixture and lamp comform to California 2022 Bulding Energy Efficiency Standards for Residential and Nonresidential Buildings, California Title 24, part 6, section 120.6, (h) Mandatory requirements for Controlled Environment Horticulture (CEH) spaces, 2. Indoor growing, horticultural lighting.; and 6. Greenhouses, horticultural lighting.
PHB5015 Ballast features:
USB interface provides full compatibility with Autopilot PX1 series Digital Lighting Controller
High-precision microprocessor control
Six-way wattage output control: 600W, 750W, 825W, 1000W, and 1150W + PX1 control mode
Robust commercial design
Superior reliability
LED status indicator
Internal RF shielding
Patented ignition control
End of lamp life signal
Auto-restrike feature protects valuable lamps from damaging power interruptions
Cooling fins for maximum heat dissipation
Suitable for use in damp locations
Features an IEC power connection and comes with an 8 240V 16/3 AWG power cord with EMI suppression and NEMA 6-15P plug
Includes 15 USB-RJ12 Controller Cable Pack
Open Reflector features:
Double-ended system delivers higher PAR value with excellent uniformity
Open design for maximum light output, optimum heat management, and longer lamp life
Premium aluminum European hammertone interior: 99.85% pure, 95% reflectivity
Provides a broad, consistent light spread
Compact design minimizes interference with sun in greenhouse applications
The ideal reflector choice for lower mounting heights
Requires fewer reflectors to meet desired light levels
Highly efficient in overlapping multi-light configurations
European-made VS K12 x 30s high temperature lamp holders
Patented reflector design: D731,109 (and other patents pending)
