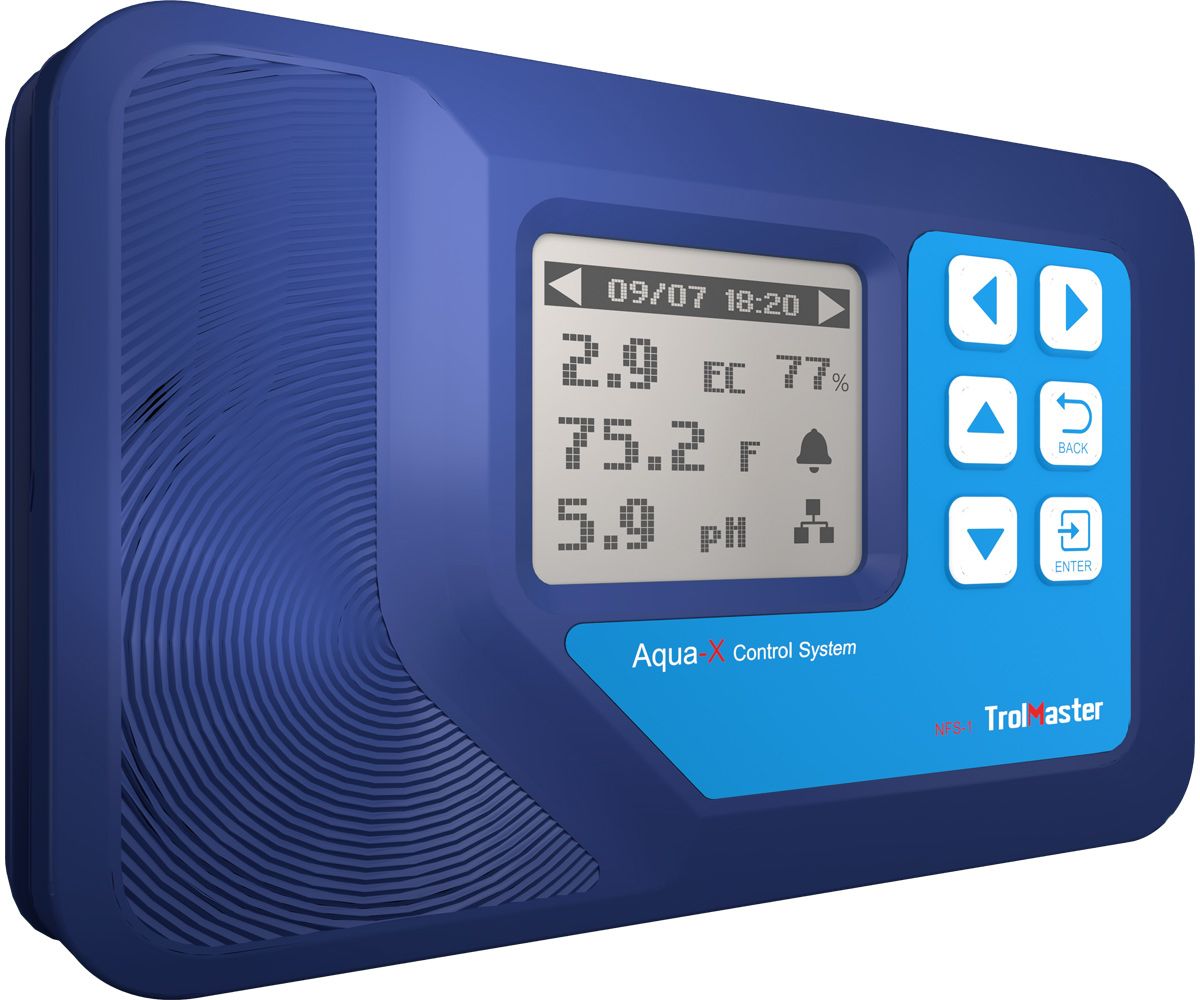

TrolMaster's Aqua-X (NFS-1) system is a professional-grade irrigation control system. It is a fully customizable modular designed system. Installation is simple and the system is easy to expand. The Aqua-X is designed to control up to 30 separate irrigation zones (24vac solenoid valves or 120vac pumps), The Aqua-x monitors' pH / EC and water temp as well as monitor actual growing medium moisture levels by using up to (8) Water Content Sensors connected to a single Aqua-x controller. The timers can be set-up to be recycling timers or to operate at a specific time of day and durations. With the free TrolMaster App, users could access all settings and alerts on the system from anywhere anytime.
The NFS-1 is the brain of the Aqua-X system. It comes with a water detector WD-1 for leaking alert and watering confirmation.
Features & Benefits:
LCD Display, Easy Operation
Managing Multiple Rooms, Multiple Zones Delivery
Control up to 30 Solenoid Valves or Pumps
pH, EC, Temp Monitoring
Free Smartphone App with Alerts & Historical Chart
Data Logging
Package Content:
1 x Aqua-X Controller
1 x Water Detector
1 x Touch Spot
1 x 12V Power Adapter
Specification:
Input Voltage : 100-240 VAC, 50/60Hz
OA6-24 24V Control Board : Max. 5pcs per set
OA6-110 110V Control Board : Max. 5pcs per set
DSP-1 Program Device Station : Max. 5pcs per set
Water Detector : Max. 30pcs per set
AMP-2 Sensor Board : Max. 1pc per set
PCT-1 or PCT-2 EC/Temp Sensor : Max. 1pc per set
PPH-1 or PPH-2 pH Sensor : Max. 1pc per set
Packaging Dimensions : 275mm(L) x 164mm(W) x 62mm(H)
