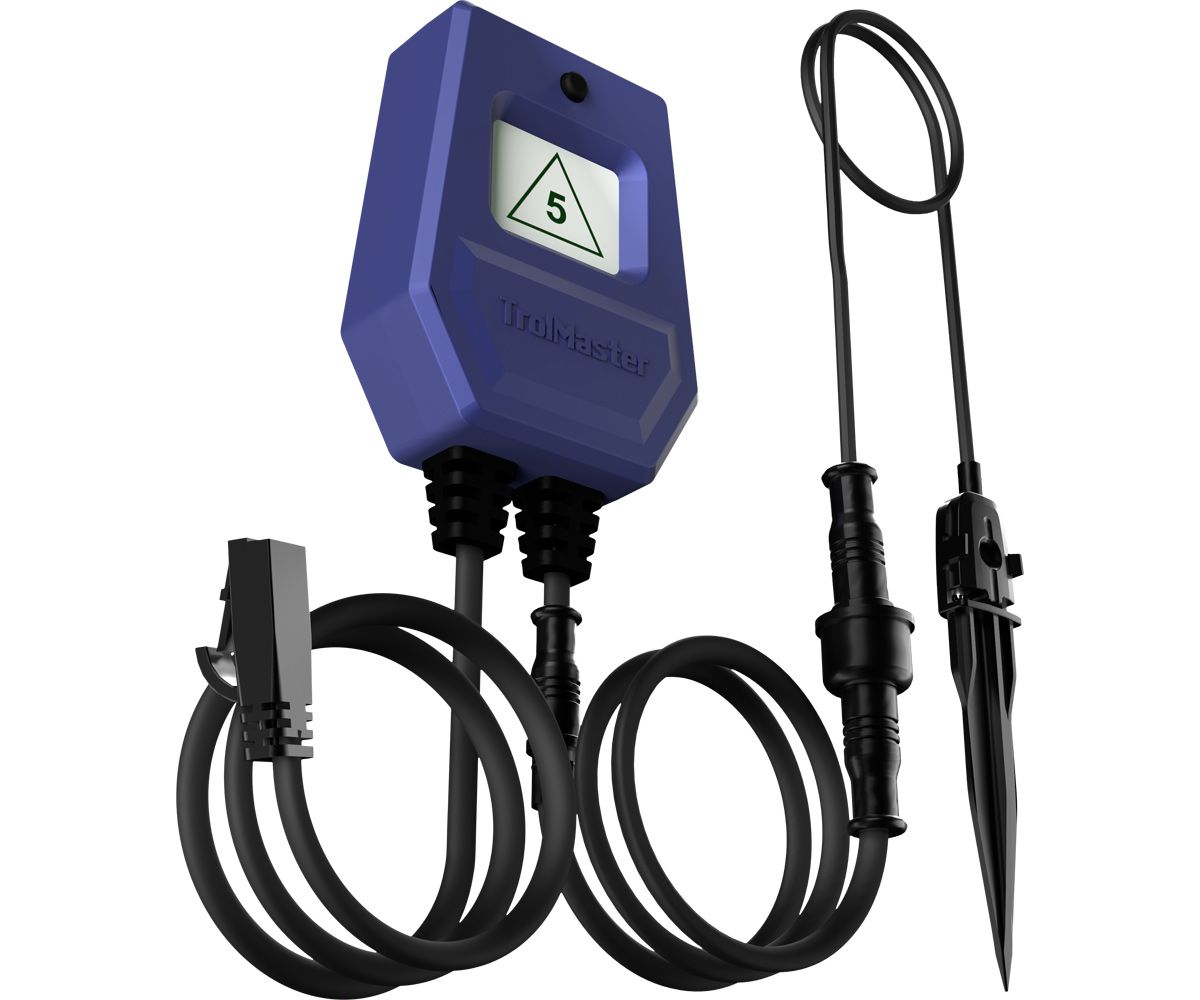

🌱 TrolMaster (WD-1) Water Detector for Hydro-X & Aqua-X System

TrolMaster's WD-1 water detector can be used in one of two ways. First, it can be used to simply monitor the floor or space for water as a leak-detector. The other way the WD-1 can be used is as a water-verification monitor. When used in this way, the water detector is placed where runoff will accumulate (or where water is being introduced to the growing medium).

Each output (solenoid or pump) on the Hydro-X/Aqua-X can be “assigned” to a specific WD-1. Every time the solenoid or pump assigned to the WD-1 is activated by the Hydro-X/Aqua-X, the WD-1 must detect water within an adjustable delay time. If water is not detected (pump or solenoid failure) the Hydro-X/Aqua-X will send out a user alert notifying of the “irrigation failure”.

Up to 25 WD-1 can be connected to a single Hydro-X/Aqua-X.

Features & Benefits:

• LCD Display, Easy Operation
• Addressing Button

Package Content:

• 1 x Water Detector
• 1 x Touch Spot
• 1 x RJ12 T-Splitter
• 1 x 16ft RJ12 Cable
• 1 x Stab Holder

Specification:

• Working Temperature :32-122°F
• Working Humidity :≤90%
• Package Dimensions :160mm(L) x 86mm(W) x 86mm(H)
