The WCS-2 is part of the next generation of substrate monitoring for temperature, EC, and water content.
TrolMaster’s WCS-2 Water Content Sensor is specifically designed to measure the water content data (percentage), temperature, and the EC of the grow media in the Aqua-X, Aqua-x Pro, and Hydro-X Pro Control System.

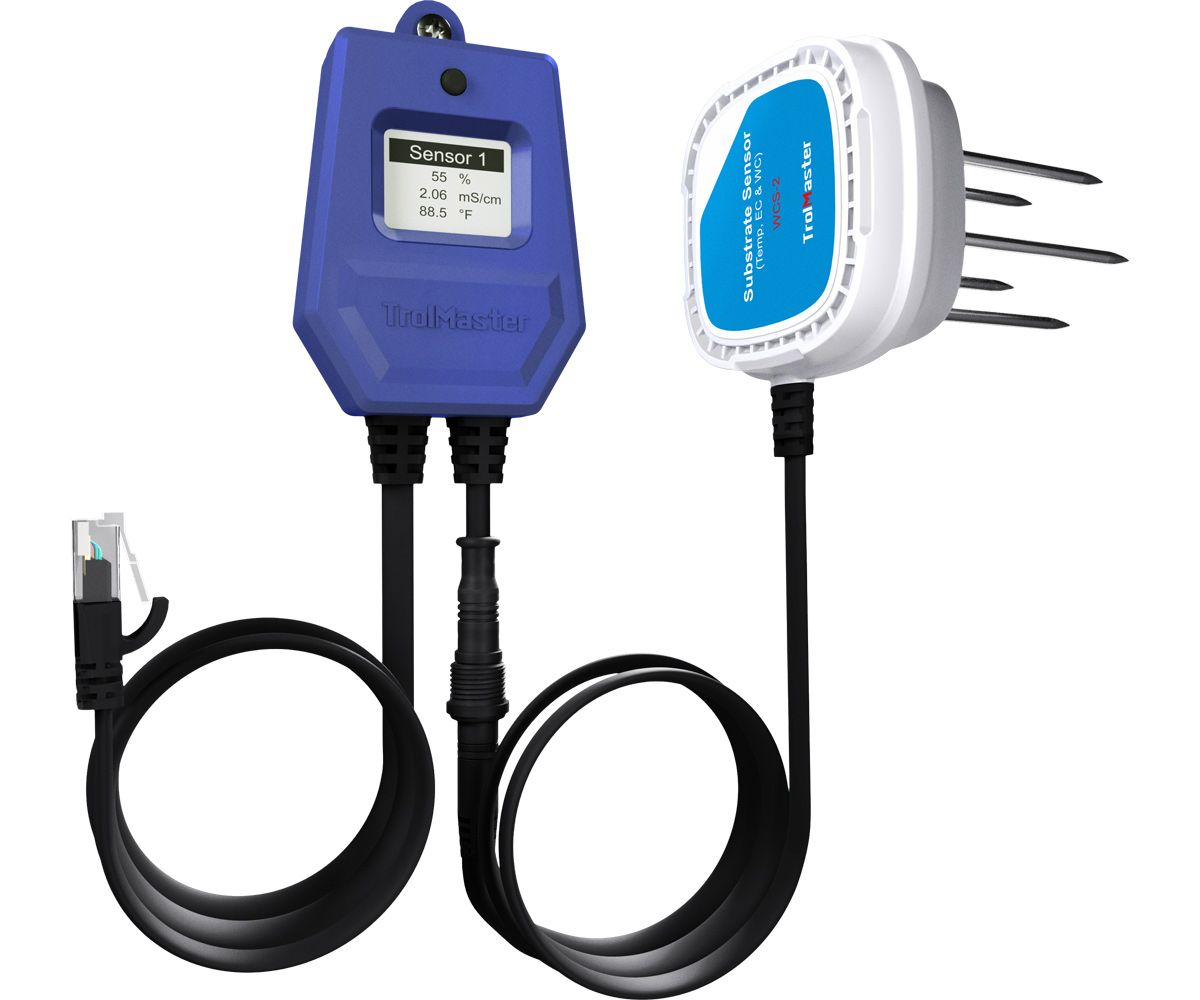

Each WCS-2 sensor includes a five-prong sensor assembly connected to a LCD communication module (Display Screen & Button). To use the WCS-2, the five prong sensor is inserted into the grow media such as soil or rock wool to be measured. Normally placed horizontally about â…“ of the way up from the bottom of the grow media container or rockwool block. You can connect multiple Water Content Sensors (up to 50 WCS-2 on the NFS-2 and HCS-2 controllers, 8 on the NFS-1 controller). The NFS-2 screen will display the value of the 3 parameters (grow medium temperature, moisture level and EC) of each individual sensor.
When using TrolMaster’s free TM+ app, you can see the water content %, temperature, and EC of the grow media on your Smartphone. You can view historical data graphs on the app and also receive notifications if the WCS-2 readings exceeds your highest or lowest alarm settings.
* The WCS-2 can only be used with the Aqua-X / Aqua-X Pro and the Hydro-X Pro
Features & Benefits:
LCD Display, easy operation
Addressing button
Real-time measuring of water Content, temperature & EC of growing medium
Alarm and mobile notification when setpoint exceeded
Package Content:
1 x Water Content Sensor
1 x RJ12 T-Splitter
1 x 16ft RJ12 Cable
Specification - Absolute Maximum Ratings:
Supply Voltage : 10.8-13.2 volts
Input Current : 100-200 mA
Operating Current : 140 typical mA (supply voltage=12V)
Operating Temperature : 32°-122°F
Storage Temperature : 0°-140°F
Humidity : ≤90%
Packaging Dimensions: 275mm(L) x 164mm(W) x 65mm(H)
