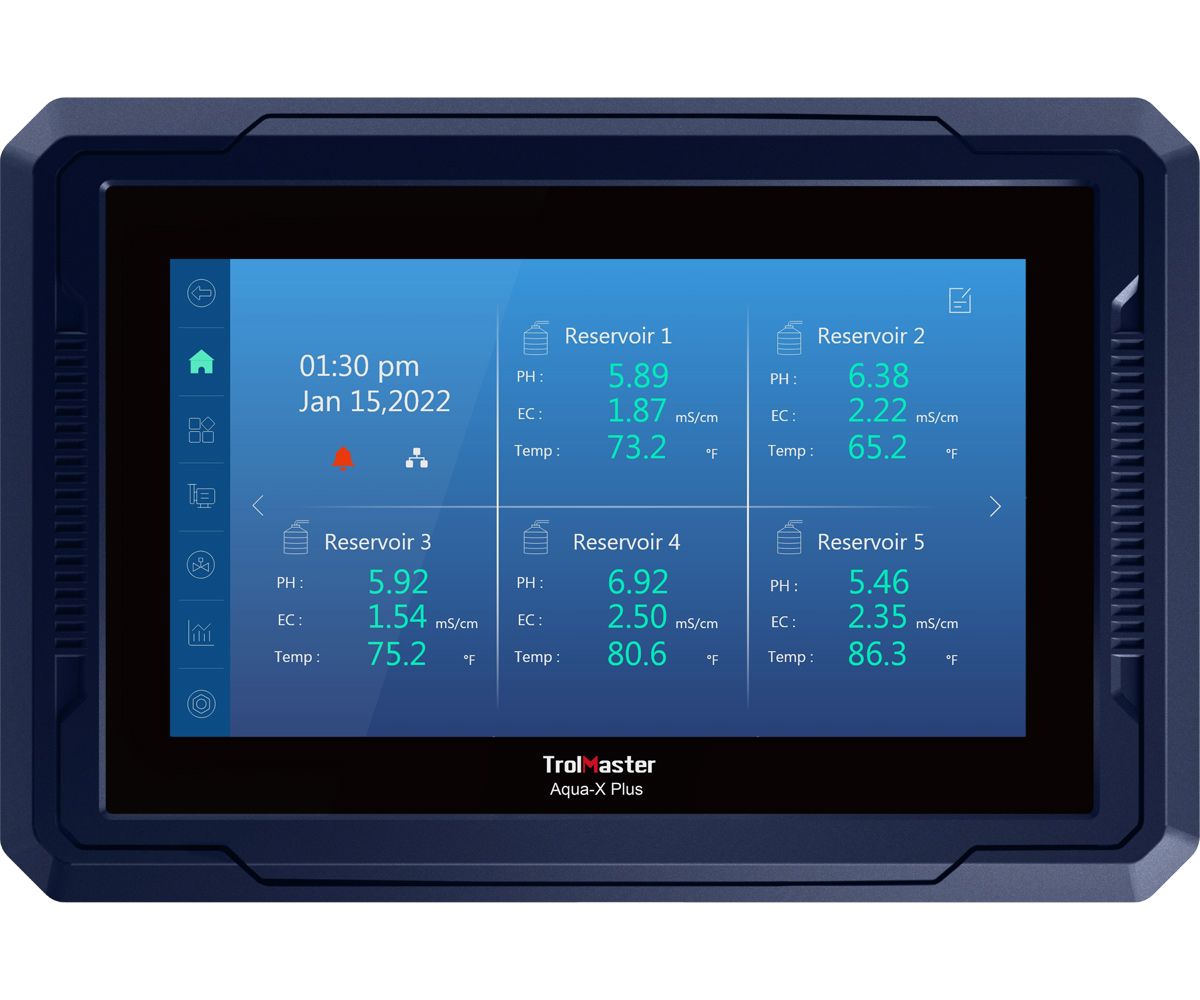

The Aqua-X Plus controller is an upgraded version of the Aqua-X controller. It’s a professional-grade multi-zone irrigation control system. It has an 800x480 7” LCD touch-screen monitor, features multiple advanced pump and solenoid control functions and has greatly expanded device control capacity.
As with all of the main controllers from TrolMaster, the Aqua-X Plus works with TrolMaster’s free app and can be connected to your internet directly using a standard CAT5 network cable. Along with controlling 240 total devices, the NFS-3 can also monitor up to 25 individual sensors including pH, EC, Temp, WC%, Grow Medium Temp and Grow Medium EC. You can view the recorded historical data directly on the NFS-3 or on your smartphone, and also receive warning messages / notifications if the growing environment exceeds your selected alarm setpoints within the NFS-3.
The optional WCS-1 or WCS-2 Water Content Sensor will monitor the water content and EC of the growing medium. The WCS-1/2 will help to visualize the dry-down time and to make adjustments to irrigation timers or irrigation settings. You can even choose to allow the WCS-1/2 Water Content Sensors to actively control irrigation cycles for automated Crop Steering based on the Water Content of your grow medium. Finally, a truly automated crop-steering controller, with the flexibility to satisfy even the most demanding applications.
The NFS-3 also features Multiple Pump Link functions. Multiple Pump Links provides choices for users to connect / link different pumps with different valves to accomplish various irrigation functions. The NFS-3 offers an amazing amount of flexibility to suit all growers.
Features & Benefits:
7" Touchscreen
New Crop Steering Irrigation Function
Expanded Sensors & Control Modules Capacity
Free Smart Phone App control
Package Content:
1x NFS-3 Controller
1x AMP-3
1x 12V Power Adapter
1x RJ12 Cable Set
1x Mounting Plate
Specification:
Input Voltage: 100-240V
Certifications: ETL/FCC
Degree of Ingress Protection: IP20
Max Distance to Device to be connected: 1000 ft
Sensor Board (AMP-3): Max 5 pc
Water pH Sensor (PPH-1,PPH-2,PPH-3): Max 5 pc
Water EC & Temp Sensor (PCT-1, PCT-2, PCT-3): Max 5 pc
Water Detectors (WD-1, WD-2): Max 20 pc
Water Content Sensors (WCS-2, WCS-1): Max 20 pc
Control Modules (OA6-24, OA6-110, DSP-1, DSD-1, OAT-24): Max 20 pc
